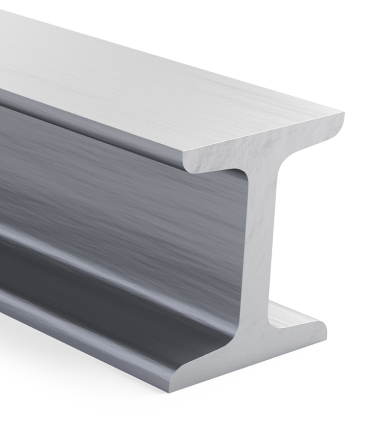

Types of Steel I-Beams
Wide Flange I-beam (W-beam): Most common type, with roughly parallel flanges for greater strength. It is typically used for heavy-duty construction.
Standard I-beam (S-beam): Flanges are tapered toward the center, often used in lighter applications.
H-beam: Similar to a wide flange I-beam but with a larger flange thickness, used for heavy-duty applications and construction projects where high load-bearing capacity is required.
Tapered I-beam: The depth of the beam reduces at the ends, offering a more efficient weight distribution.
ASTM A572 (Grade 50):
- 1. High-strength low-alloy steel used for heavy-duty structures. It provides good resistance to corrosion.
- 2. Yield Strength: 345 MPa (50,000 psi)
- 3. Tensile Strength: 485–620 MPa (70,000–90,000 psi)
Weight and Load Capacity
- 1. Weight per Meter: Steel I-beams are also classified by their weight per unit length (lbs/ft or kg/m). For example:
- 2. W8x24: 24 lbs/ft (11 kg/m)
- 3. W12x50: 50 lbs/ft (22.4 kg/m)
- 4. Load-Bearing Capacity: The load-bearing capacity depends on the size and material grade. For instance, a W12x50 beam can carry much heavier loads than a W8x24 beam.
Finish and Coatings
- 1. Mill Finish: The raw finish of steel beams as they come from the steel mill, which may need further treatment for corrosion protection.
- 2. Galvanized Steel: I-beams can be galvanized (coated with zinc) to protect against corrosion in outdoor or harsh environments.
- 3. Painted Steel: I-beams may be coated with protective paint for additional corrosion resistance, particularly in environments where galvanization is not sufficient.
Applications
- 1. Construction: Used in buildings, bridges, and other infrastructure projects for vertical and horizontal load-bearing.
- 2. Industrial: Common in factories, warehouses, and heavy equipment installations.
- 3. Transport: I-beams are used in the construction of rail tracks, marine vessels, and even vehicles requiring high strength.
- 4. Energy: Used in the construction of power plants, wind turbine supports, and oil rigs.
Material Grades & Specifications
- 1. ASTM A36: Standard for carbon steel used in general construction. Offers good weldability and can withstand moderate stress.
- 2. Yield Strength: 250 MPa (36,000 psi)
- 3. Tensile Strength: 400–550 MPa (58,000–80,000 psi)
ASTM A992:
Standard for structural steel used in wide flange I-beams. Known for better performance in tension and shear compared to A36.
- 1. Yield Strength: 345 MPa (50,000 psi)
- 2. Tensile Strength: 450–620 MPa (65,000–90,000 psi)
- 3. Commonly used in building frames, bridges, and other large structural projects.
ASTM A709:
Steel used for bridges and high-strength applications in harsh environments.
- 1. Grades: Grade 36, Grade 50, Grade 50W (weathering steel for resistance to atmospheric corrosion).
- 2. Stainless Steel Grades (304, 316):Used for applications requiring corrosion resistance (e.g., marine, chemical processing).
- 3. Yield Strength: 210–250 MPa (30,000–36,000 psi)
Common Standards
- 1. AISC (American Institute of Steel Construction): Provides standards and guidelines for the design and manufacture of I-beams and other structural steel components.
- 2. BS 4 (British Standard): Standards for structural I-beams used in the UK.
- 3. EN 10034: European standard for rolled I-sections.
- 4. ISO 630: International standard for steel structural beams.
Fabrication and Customization
- 1. Cut-to-Length: Steel I-beams can be fabricated to custom lengths depending on the pro- ject's specifications.
- 2. Pre-drilled: Beams can be drilled for bolts or rivets as part of the fabrication process.
- 3. Welded: I-beams can be welded together in different configurations, such as for frames, trusses, and complex structures.
Structural Design Considerations
- 1. Bending: Steel I-beams are designed to resist bending, as the flanges help to carry the tensile and compressive stresses.
- 2. Shear: The web of the I-beam resists shear forces, especially near supports.
- 3. Deflection: The I-beam's depth and material strength determine its deflection under loads. A deeper beam typically resists deflection better.
